LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min

LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min

intelligent wine box manufacturing system

high-speed box corner pasting machine

wine box machine 35-45pcs/min

起源の場所:

中国

ブランド名:

Lishunyuan

証明:

CE

モデル番号:

LY-HB1500CJ

連絡 ください
引金 を 求め て ください
LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min
製品詳細
用紙積載高さ:
800mm
スピード:
20-26個/分
位置精度:
±0.05
接着剤タンクの容積:
50kg
空気圧:
0.5～0.7mpa/min
総電力/電圧:
28.5KW/AC380V
最大重量:
8000kg
機械寸法:
L11820*W2500*H2100
完成品サイズ(最小):
長さ90*幅90*高さ200
完成品サイズ(最大):
長さ160*幅160*高さ320
保証:
1年
ハイライト:

intelligent wine box manufacturing system

,

high-speed box corner pasting machine

,

wine box machine 35-45pcs/min

支払いと送料の条件
最小注文数量
1
価格
Negotiate
パッケージの詳細
フィルムと合板の箱
受渡し時間
15-20日
支払条件
LC、T/T
供給の能力
15SETS/月
関連製品
良い価格 LY-HB2500CK インテリジェント高速リジッドボックス生産ライン 速度 35-45個/分 オンライン ビデオ

LY-HB2500CK インテリジェント高速リジッドボックス生産ライン 速度 35-45個/分

最もよい価格を得なさい
良い価格 自動四隅テーピング機 85個/分 オンライン

自動四隅テーピング機 85個/分

最もよい価格を得なさい
良い価格 LY-900SMB 自動四辺縁巻き機、ハードカバー本、ノートカバー、カレンダーなどに適しています オンライン ビデオ

LY-900SMB 自動四辺縁巻き機、ハードカバー本、ノートカバー、カレンダーなどに適しています

最もよい価格を得なさい
良い価格 完全に自動化されたコーナー補強アプリケーション 85pcs/min オンライン ビデオ

完全に自動化されたコーナー補強アプリケーション 85pcs/min

最もよい価格を得なさい
連絡 ください
今連絡してください
製品説明

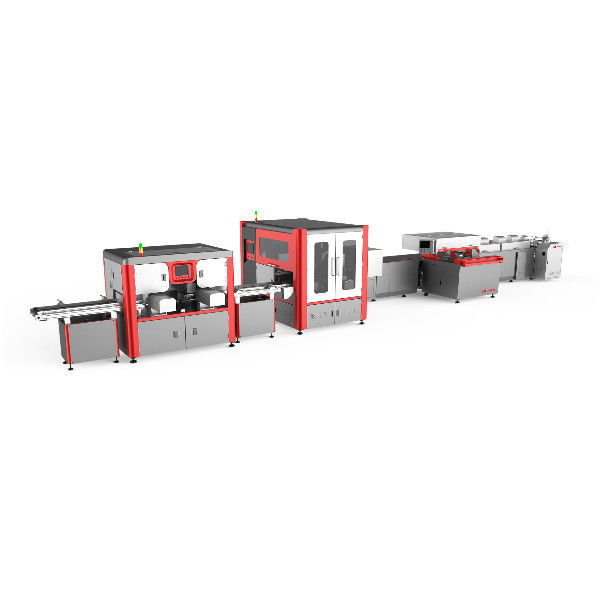

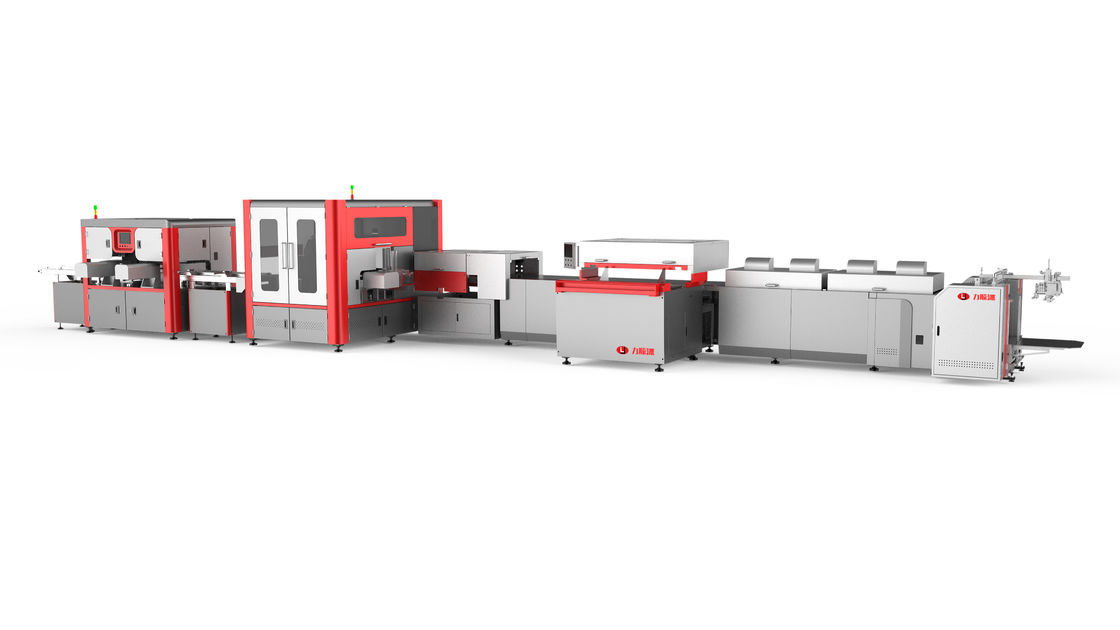

LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System
Production Speed: 35-45 pieces per minute
System Overview
The LY-HB1500CJ is an intelligent high-speed drawer-style box manufacturing system designed for wine boxes, tube boxes, drawer boxes, edge wrapping boxes, and similar products. This advanced equipment features visual positioning with ±0.05mm accuracy and achieves production speeds of 18-25 pieces per minute.
The system incorporates adjustable molds that eliminate the need for new molds in subsequent versions. Memory functions enable quick parameter adjustments for version changes, ensuring easy and convenient operation.
The production line includes IoT functionality for real-time monitoring of facility running states, parameters, and consumption of gas and power, demonstrating high levels of intelligence, information integration, and human-centered design.
Key Features
  • Paper Feeder: Full servo control with rear suction paper feeding prevents double sheets and ensures stable paper feeding
  • Gluing System: Integrated glue collection tube for easy washing and maintenance
  • Visual Positioning: High-precision robot suction box with dual camera vision positioning (accuracy ≤ 0.05mm)
  • Hemming Module: Mechanical edge folding technology completes four-side folding in one plane, reducing scratches
  • Box Forming: Surround frame wrapping technology for stable, efficient, and fast operation
Packing & Shipping
LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 0 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 1
Company Profile
Founded in 2001 and located in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established a comprehensive sales and after-sales service network across China, with products exported to over 40 countries and regions including Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 2
Services & Capabilities
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum support including pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, precision, and premium quality for boutique packaging, fully aligned with each client's unique requirements.
Certifications
LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 3 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 4 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 5 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 6 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 7
Manufacturing Workshop
LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 8 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 9 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 10
Industry Exhibitions
LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 11 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 12 LY-HB1500CJ Intelligent High-Speed Wine Box Manufacturing System Speed Up O 35 - 45pcs/Min 13
Quality After-Sales Service Commitment
  • 1 Hour Service: Response to service requests within one hour with solution suggestions
  • 12 Hours Service: GM's office handles customer complaints directly with solutions within 12 hours
  • 24-Hour Response: Maintenance team deployment within 24 working hours for customers within 500km service range
  • Monthly Follow-up: Regular customer visits ensure continuous support and satisfaction
  • Pre-sale Service: Comprehensive training programs with professional engineers before equipment delivery
  • Sale Services: Installation, debugging, and one week of free training services upon machine arrival
  • After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
