Name: LY-900KC Automatic Grooving Machine High Speed Save Manual
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-900KC
Price: 135,006.00 USD
Availability: InStock

家へ > 製品 > 機械を作る堅い箱 >

LY-900KC Automatic Grooving Machine High Speed Save Manual

automatic grooving machine high speed

rigid box making machine with warranty

LY-900KC grooving machine save manual

起源の場所:

中国

ブランド名:

Lishunyuan

証明:

モデル番号:

LY-900KC

連絡ください

引金を求めてください

製品詳細

仕上がりサイズ(MIN):

120-120mm

仕上がりサイズ(MAX):

400~850mm

精度精度:

±0.05

通常のエラー:

±0.1mm

最高速度:

30～32m/分

通常の速度:

20～25m/分

溝度:

80°-140°調整可能

作業ピースの厚さ:

300g/m2 - 3.5mm

総溝数:

力:

3.0kw

寸法:

2100×1400×1350mm

重さ:

1480kg

資材受け取り:

2層同方向受信

作業ピースの幅:

120～850mm

保証:

1年

ハイライト:

automatic grooving machine high speed

rigid box making machine with warranty

LY-900KC grooving machine save manual

支払いと送料の条件

最小注文数量

価格

Negotiate

パッケージの詳細

フィルムと合板の箱

受渡し時間

15-20日

支払条件

LC、T/T

供給の能力

15SETS/月

LY-850DN/DM 多機能の二重視覚定位装置二重箱製造装置

最もよい価格を得なさい

ビデオ

LY-SJ-650-A 自動給紙＆糊付け機速度 20-50個/分

最もよい価格を得なさい

LY-HB2500CK インテリジェント高速リジッドボックス生産ライン速度 35-45個/分

最もよい価格を得なさい

ビデオ

LY-HB2500CK インテリジェント高速硬質箱製造ライン高速箱製造機

最もよい価格を得なさい

連絡ください

今連絡してください

製品説明

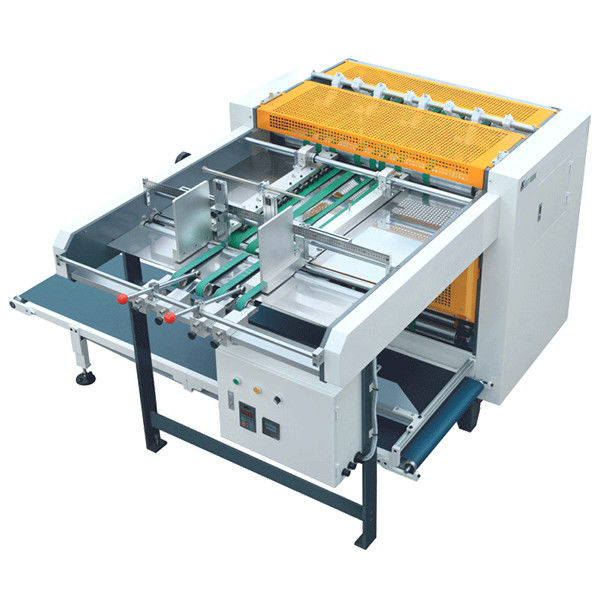

LY-900KC Automatic Grooving Machine High Speed Save Manual

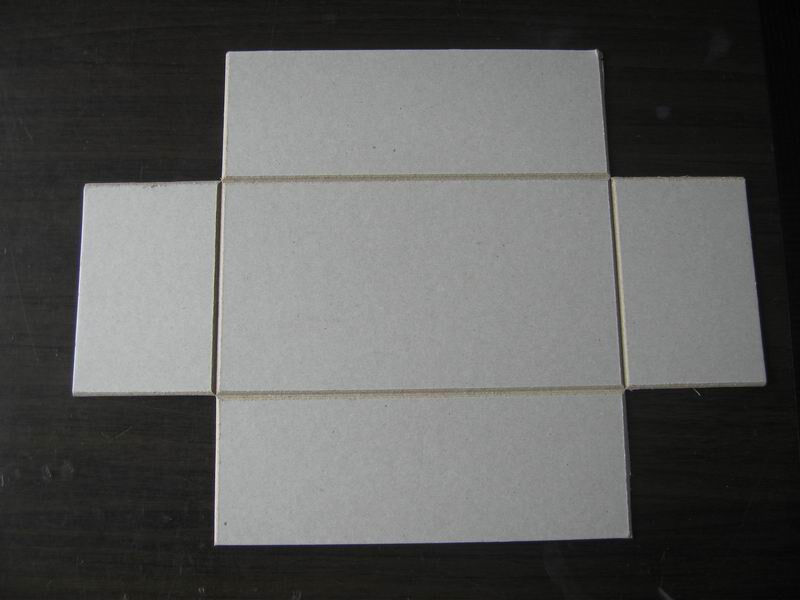

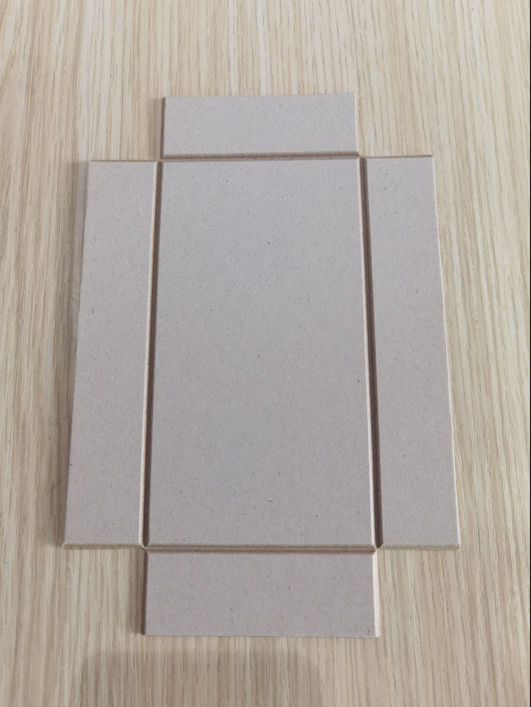

The LY-900KC Automatic Grooving Machine specializes in creating precise V-grooves for various cardboard types including industrial board and grayboard. Featuring advanced roller wrapping technology, this machine delivers exceptional precision, high processing speeds, and extended tool durability for superior box making performance.

Key Features

60cm-diameter roller wrapping design ensures V-groove positioning accuracy up to +0.05mm with perfect straightness and zero deviation
Compatible with workpiece sizes 120-850mm (width) × 120-400mm (length) and thickness 300gsm-3.5mm
Groove angle adjustable from 80° to 140° with capacity to process up to 9 grooves simultaneously
High processing speed up to 30-32m/min (110-120pcs/min for 200×200mm workpiece)
Automatic dust collection and double-layer same-direction material receiving system
Bidirectional precision positioning and stable mechanical structure with 1480kg weight

Technical Specifications

Parameter	Specification
Minimum Finished Size	120×120mm
Maximum Finished Size	400×850mm
Precision Accuracy	±0.05mm
Normal Error	±0.1mm
Fastest Speed	30-32m/min
Normal Speed	20-25 m/min
Groove Degree	80°-140° adjustable
Workpiece Thickness	300g/m² - 3.5mm
Total Number of Grooves	9
Power	3.0kw
Dimensions	2100×1400×1350mm
Weight	1480kg
Dust Collection	Automatic collection
Material Receiving	Double-layer same-direction receiving
Workpiece Width	120-850mm
