起源の場所:
中国
ブランド名:
Lishunyuan
証明:
CE
モデル番号:
LY-PK-1816RM

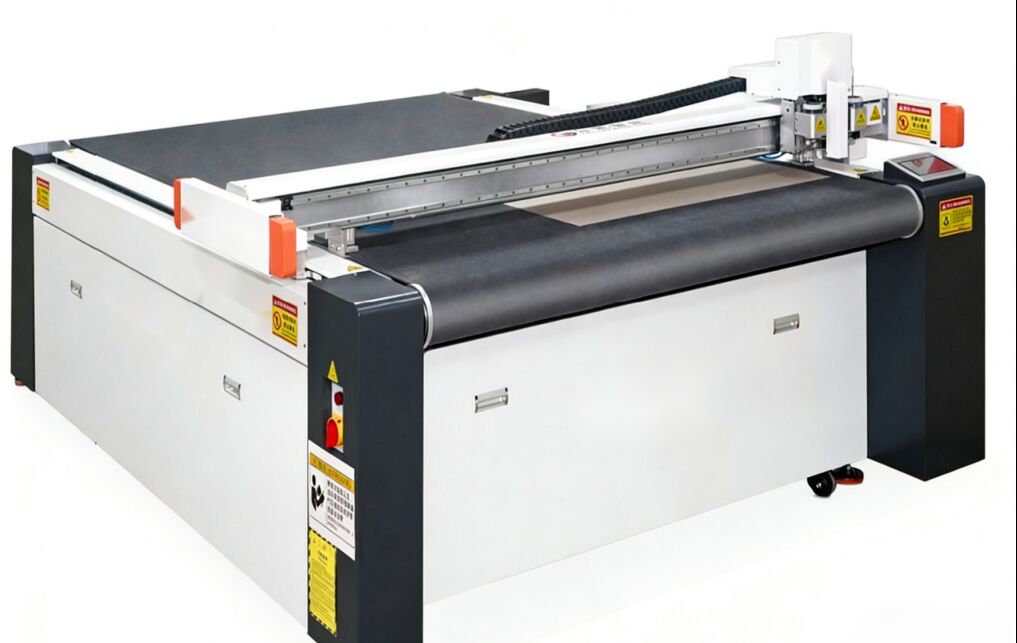

The LY-PK-1816RM is a no-die cutting machine for non-metal flexible materials, designed for packaging and printing sample making and small-batch production. This mechine integrates cutting, creasing, grooving, and half-cut functions, supporting materials up to 50mm thick such as greyboard, corrugated board, EVA, and foam.
It has many key advantages such as ±0.05mm accuracy, automatic tool setting, CAD/DXF file support, and a built-in vacuum system which can ensure precise and reliable operation.Its oscillating knife and creasing wheel deliver clean cuts and uniform creases on both thin and thick materials. Optional camera registration and grooving tools further enhance its flexibility for rapid prototyping and low-volume production.
Equipment Features
|
|
The integrated steel frame is welded from thickened high-carbon steel, ensuring no deformation or vibration under long-term high-speed operation. It provides stable mechanical performance, guaranteeing cutting accuracy and machine longevity.
|
|
Built-in suction system that intelligently activates vacuum zones based on material size, delivering stronger and more uniform hold-down and significantly improving sheet flatness. It prevents edge lifting and shifting, and is suitable for both thin and thick boards.
|
|
Two independently driven work heads allow multiple tools to operate continuously, and tools are interchangeable between modules. Thus, one machine handles cutting, creasing, grooving, and plotting.With a maximum cutting thickness of 50mm, the machine is compatible with corrugated board, grey board, paperboard, thin foam, leather, and other sheet materials, meeting daily sample-making needs.
|
|
The built-in automatic tool setting system enables one-touch auto-setting and length compensation after a tool change, requiring no manual calibration. This ensures fast changeover with high precision. The high-precision servo-driven transmission system delivers cutting accuracy up to ±0.05mm and produces clean, burr-free edges.
|
|
You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve. |
|
Key components are protected against dust and debris, resulting in low failure rates and simple routine maintenance. Additionally, low energy consumption ensures environmentally friendly and cost-effective operation. Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer sample requests. |
Fuction Examples
|

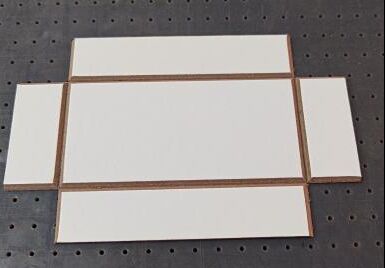

1.Grooving (V/U-Groove) V/U grooving switchable, one-step forming for rigid & soft materials.
|
|
2.Half-Cut Die Cutting Half-cut die cutting, cuts top layer only for easy-tear & connecting parts.
|
|

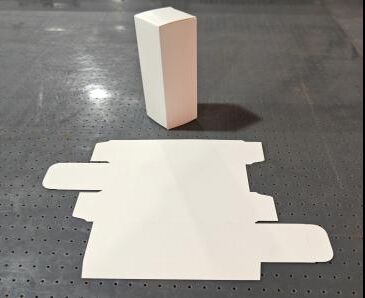

3.Creasing Uniform creasing, no cracking or wrinkling when folding.
|
|

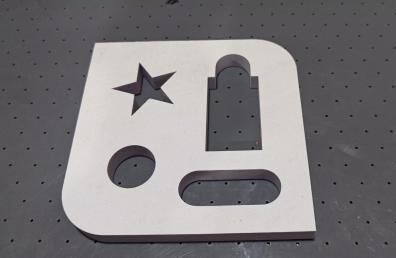

4.Full-Cut Die Cutting No mold required, precise full-through cutting, suit for small-batch sampling. High-precision cutting with no wrinkling on thin paper and no edge bursting on thick paper.
|
|
5.EVA Cutting Special non-stick cutter, smooth and clean EVA cutting.
|
|
6.Corrugated Board Cutting Integrated cutting, creasing, and slotting for accurate reproduction of carton structures.
|
|
7.Adhesive Label Cutting Precision-controlled depth die-cutting that cuts through only the face paper and adhesive layer while leaving the liner intact.
|
|
8.EPE Cutting Capable of high-precision cutting of complex contour shapes, suit for various packaging insert processing.
|
|
Specifications
|
|
|
MAX working speed
|
1500mm/s |
|
MAX cutting speed
|
1200mm/s |
|
Working accuracy
|
±0.05mm |
|
Thickness of work piece
|
50mm |
|
Effective working size
|
L1800mm*W1600mm |
|
Power supply
|
380V±10% |
|
Total power
|
7.5KW |
|
Machine dimension
|
L2770*W2580*H1330mm |
